Don Garlits

1985–1986 Swamp Rat XXX · Top Fuel dragster

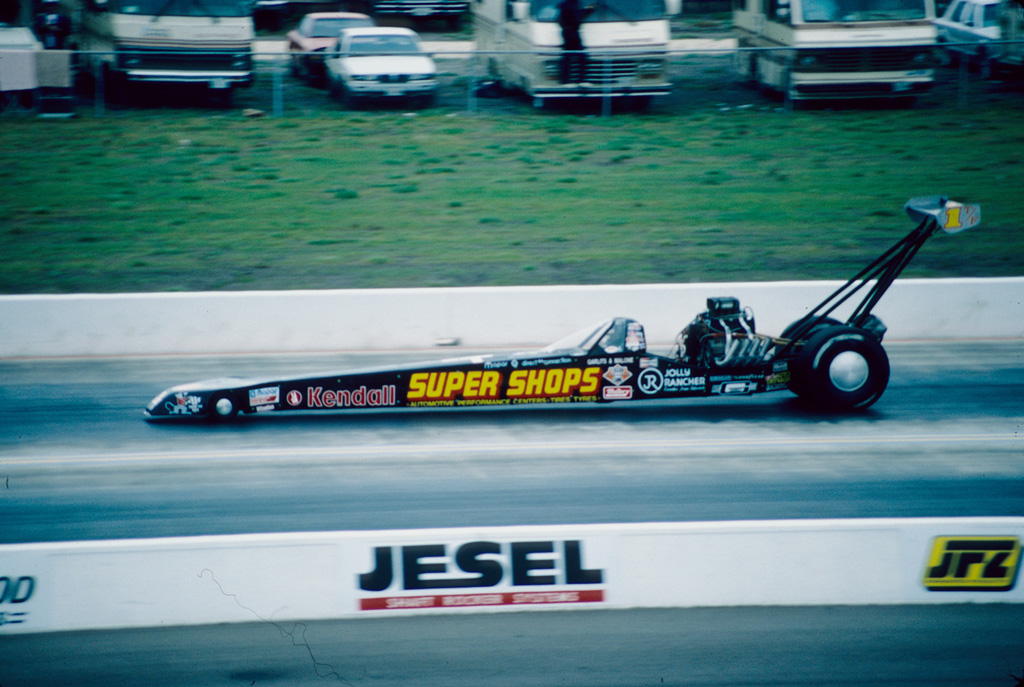

Don Garlits driving the actual streamlined Swamp Rat XXX Top Fuel dragster at Texas Motorplex in 1987; no registration is visible.
Don Garlits in the actual Swamp Rat XXX at Texas Motorplex on April 5, 1987, as identified by the licensed source photograph. No registration is visible.Photo: twm1340 · CC BY-SA 2.0. Joyride serves the 1024 × 687 Commons JPEG byte-for-byte. No crop, resize, retouching, generation or vehicle reconstruction; no registration is visible. Responsive presentation may crop displayed edges.
Don Garlits smiling in a black Hemi Magnum cap and Don Garlits Museum shirt in 2007, photographed by cole24_.
Don Garlits2007 · Identification portraitcole24_ · CC BY-SA 2.0. Joyride serves the current 2560 × 1920 Commons JPEG byte-for-byte. No crop, resize, retouching or generation; a responsive frame may crop displayed edges. The portrait remains separate from the Swamp Rat XXX photograph.

The streamliner that carried Top Fuel past 270

Connection
Builder and competition association · not personal ownership
When
Built 1985–1986 · 1986 NHRA champion · photographed April 5, 1987
Identity
Individual Swamp Rat XXX Top Fuel dragster · made 1985–1986 · Smithsonian record nmah_1276317

The Smithsonian identifies Swamp Rat XXX as the Top Fuel dragster Don Garlits designed, built and raced. Its long wheelbase, tiny front wheels, rear engine, enclosed body and downforce wing turned one individual car into a compact lesson in 1980s drag-racing engineering.

NHRA records Garlits introducing the streamlined car at the 1986 Gatornationals, breaking the 270-mph barrier in the semifinals, winning the event and eventually the championship. The Smithsonian records its championship quarter-mile speed as 272.55 mph; NHRA’s 2026 retrospective rounds that pass differently at 272.56 mph. Joyride preserves both source values instead of smoothing away the hundredth-mile-per-hour difference.

The licensed track photograph is identified as Garlits in Swamp Rat XXX at Texas Motorplex on April 5, 1987. The Smithsonian says the car later crashed at Spokane and retired with Garlits, and credits the museum gift to Don Garlits, Inc. That corporate credit does not establish Garlits’s personal legal title, so this is a builder-and-driver story—not a personal-ownership claim. The museum record, reviewed October 5, 2026, says the car is currently not on view.

Documented custody

Where the car went next

  1. 1985–1986Garlits builds Swamp Rat XXX

    The Smithsonian dates the individual dragster to 1985–1986 and identifies Garlits as its designer, builder and driver.

  2. 1986A championship and a 270-mph barrier

    NHRA records the Gatornationals debut, event win and championship; the Smithsonian records a 272.55-mph quarter-mile speed.

  3. April 5, 1987The exact car photographed at speed

    The licensed source identifies Garlits in Swamp Rat XXX at Texas Motorplex. The photograph establishes the race appearance, not personal title.

  4. After the Spokane crashRetirement and Smithsonian custody

    The Smithsonian says the car and Garlits retired after the crash and credits the gift to Don Garlits, Inc.; its record currently says the car is not on view.

Follow the evidence

Sources for this story

The Smithsonian identifies nmah_1276317 as the individual Swamp Rat XXX designed, built and raced by Garlits, records its 1986 championship and later retirement, and credits the gift to Don Garlits, Inc. NHRA independently records the 1986 Gatornationals debut, 270-mph barrier, event win and championship. The licensed track photograph identifies Garlits in that exact named car. No personal legal ownership, chassis number, current private owner, public-display claim, road-car equivalence or broader production-family coverage is asserted.

  • Don Garlits Top-fuel Dragster Swamp Rat XXXSmithsonian Institution · National Museum of American History · Collection record · reviewed 2026-10-05 · external source

    The individual car’s identity, 1985–1986 date, Garlits’s designer-builder-driver roles, 1986 championship, 272.55-mph speed, Spokane crash, retirement, corporate gift credit and current not-on-view status.

  • The Top 75 Moments in NHRA history: Revealing Moments 36–45National Hot Rod Association · 2026-01-28 · external source

    Swamp Rat XXX’s 1986 Gatornationals debut, streamlined form, 272.56-mph pass, event win, championship and later Smithsonian placement.

Reviewed

Why this is the actual car
  • Photo identity evidence

    The Smithsonian identifies nmah_1276317 as the individual Swamp Rat XXX that Garlits designed, built and raced.

  • Photo identity evidence

    Photographer twm1340 identifies the track photograph as Garlits in Swamp Rat XXX at Texas Motorplex on April 5, 1987; Commons verified its CC BY-SA 2.0 license.

The matching photographer, venue, date and vehicle history establish the identification; the chassis stamp is not visible in these photographs.
